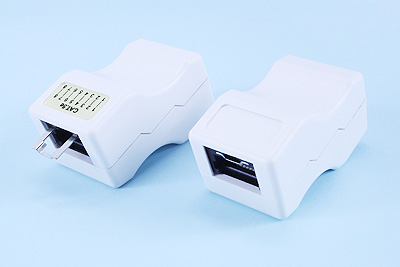

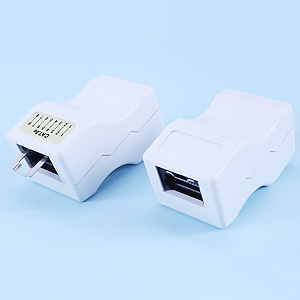

    IC-PM06L-01 C6 Inline Coupler UTP


    C6 Inline copuler, UTP, Jack to Jack type
    Horizontal Narrow ( Slim Width = 16.3mm)
    Color Available : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Plated


    Mechanical Specifications:

    - RoHS
    - Meets C6 EIA/TIA 568B Standard
    - Jack Insertion Cycle: Over 2000 Cycle
    - Operation Temperature: -40 ~ +70 Degree Celsius


     Materials :

    - Body: Fireproof ABS UL-94V0
    - PCB: FR-4 / UL-94V0
    - Jack: 8P8C 50 micro inches gold plated
    - Lock bar: Metal (SPCC)
    - Spring: SUS
    - Spring Base: fire Proof UL-94V2-PC


     Electrical Specifications:

    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - DC Resistance: 0.1 ohms (max.)
    - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.



    Drawing

Part No. IC-PM06L-01
C6 Inline Coupler UTP
Performance Category

Cat. 6
Description

Cat. 6 inline Coupler UTP
Packaging Features 1pcs/bag, 50 bags/big bag
Operation Temperature - 40℃ ~70 ℃
Compliance Meet C6 EIA/TIA 568B Standard & ROHS compliant
