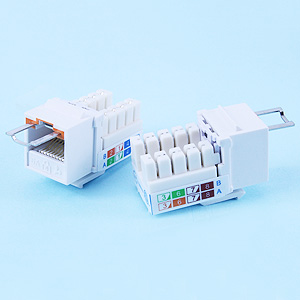

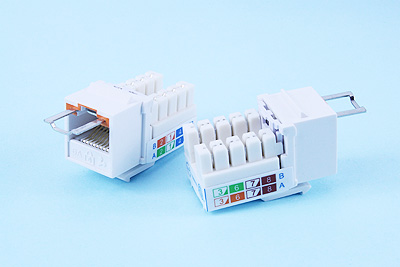

• KJ-PM05L-02 C5e Keystone Jack UTP

    KJ-PM05L-02 C5e Keystone Jack UTP


    Mechanical Specifications:
    - RoHS
    - Meets C5e EIA/TIA 568B Standard
    - IDC Punch Down Cycle: over 250 Cycles (min.)
    - Jack Insertion Cycle: Over 2000 Cycles (min.)
    - Operation Temperature: -40℃ ~ +70 ℃


    Materials :
    - Body: Fireproof ABS UL-94V0
    - PCB: FR-4 / UL-94V0
    - Jack: 8P8C 50 micro inches gold plated
    - Lock bar: Metal (SPCC)
    – IDC description: For 22-26 AWG
                              For 110 punch-down Tool


    Electrical Specifications:
    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - DC Resistance: 0.1 ohms (max.)
    - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.

    • 10 Colors : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Metal, Tin

    Drawing
