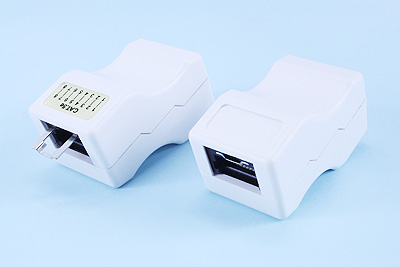

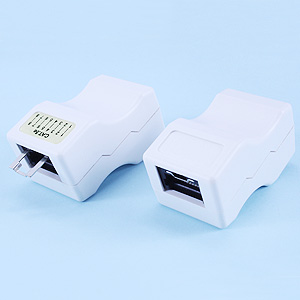

    IC-PM05L-01 C5e Inline Coupler UTP

    Mechanical Specifications:

    - RoHS
    - Meets C5e EIA/TIA 568B Standard
    - Jack Insertion Cycle: Over 2000 Cycles(min)
    - Lock Bar Tension : 15 kgs (min.)
    - Operation Temperature: -40 ~ +70 Degree Celsius


    Materials :

    - Body: Fireproof ABS UL-94V0
    - PCB: FR-4 / UL-94V0
    - Jack: 8P8C 50 micro inches gold plated
    - Lock Bar : Metal (SPCC)
    - Spring : SUS
    - Spring Base : fireproof UL-94V2-PC
    - Heat Shrinkable Tube : PVC


    Electrical Specifications:

    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - DC Resistance: 0.1 ohms (max.)
    - Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.



    10 Colors : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Plated

    Drawing
