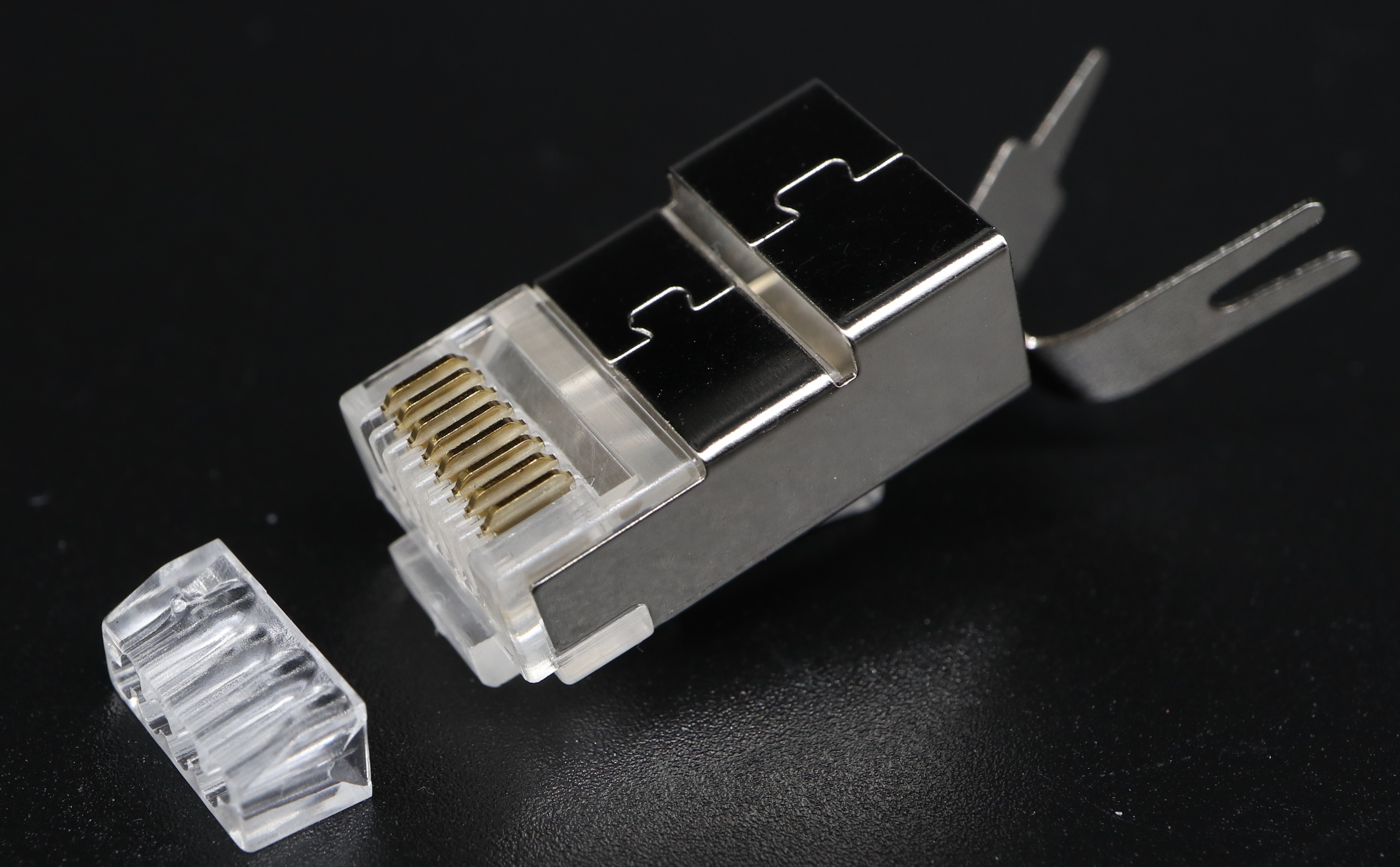

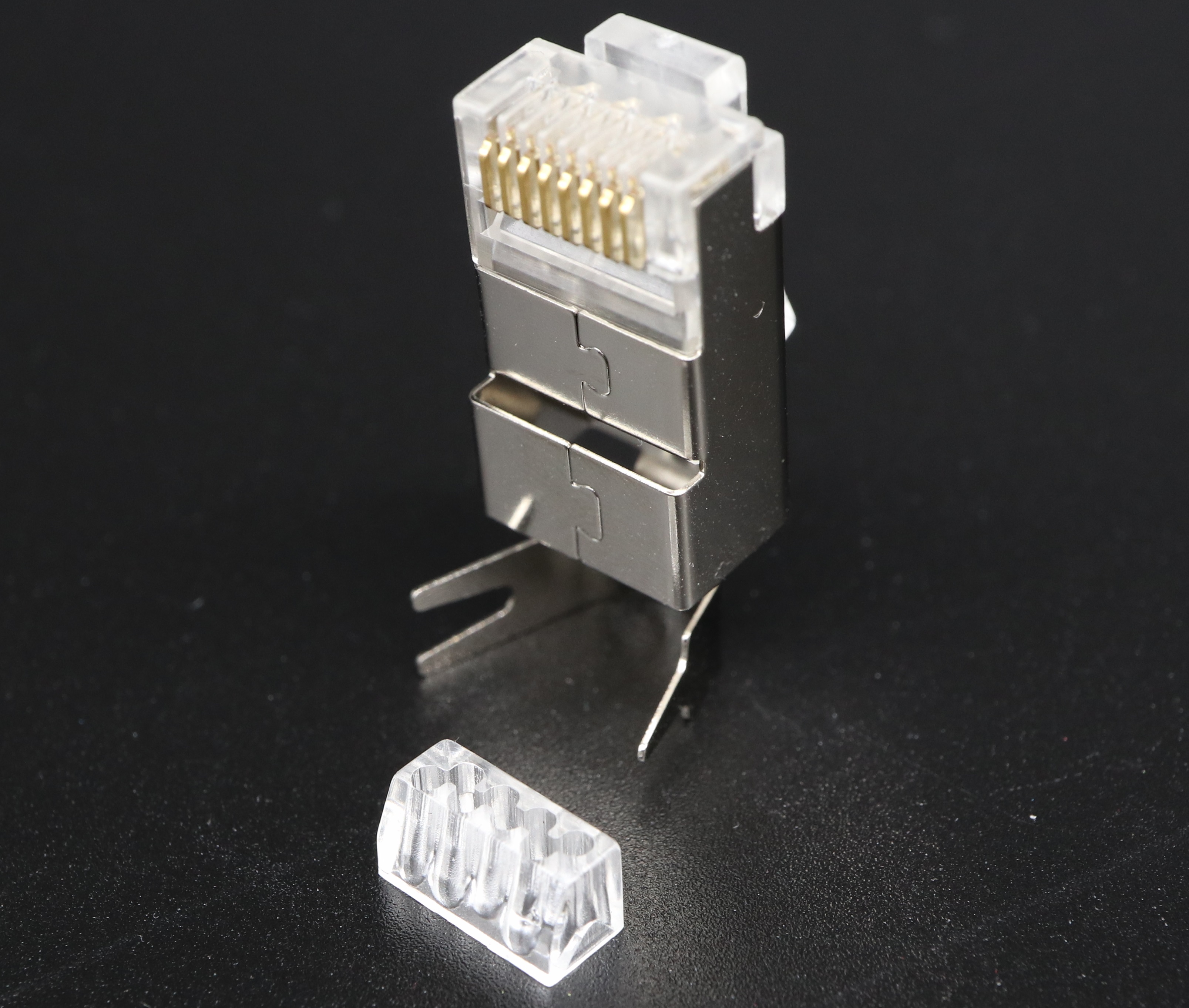

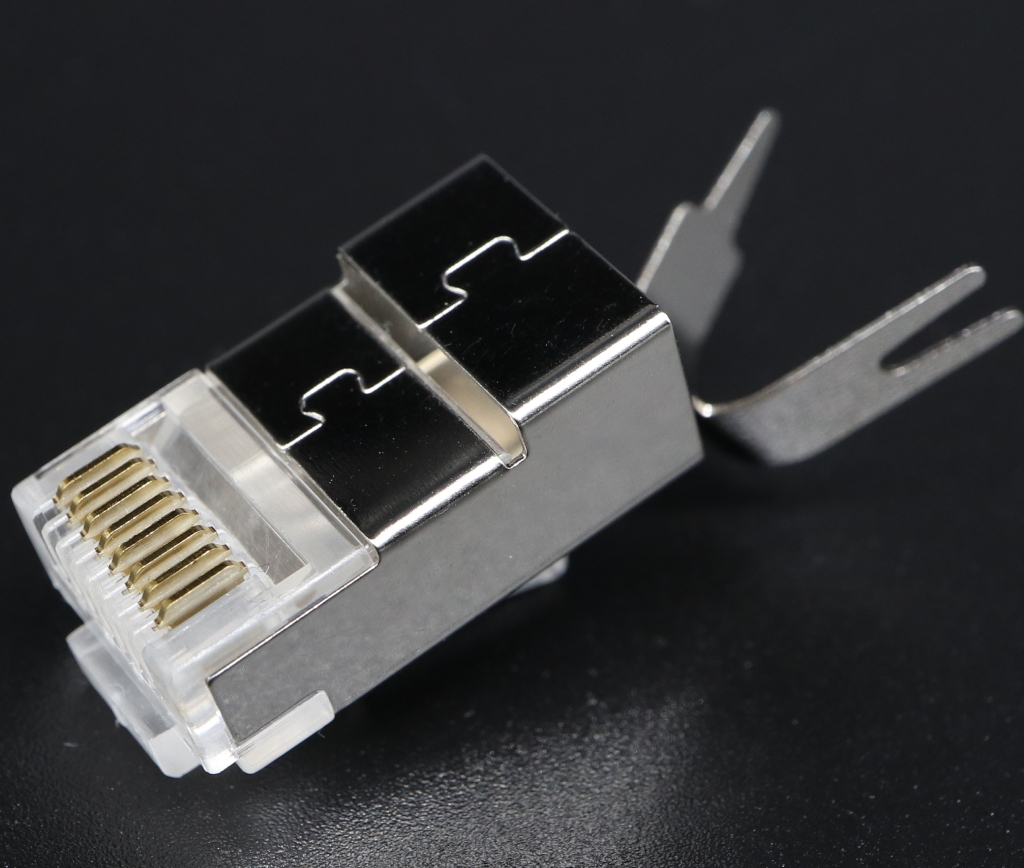

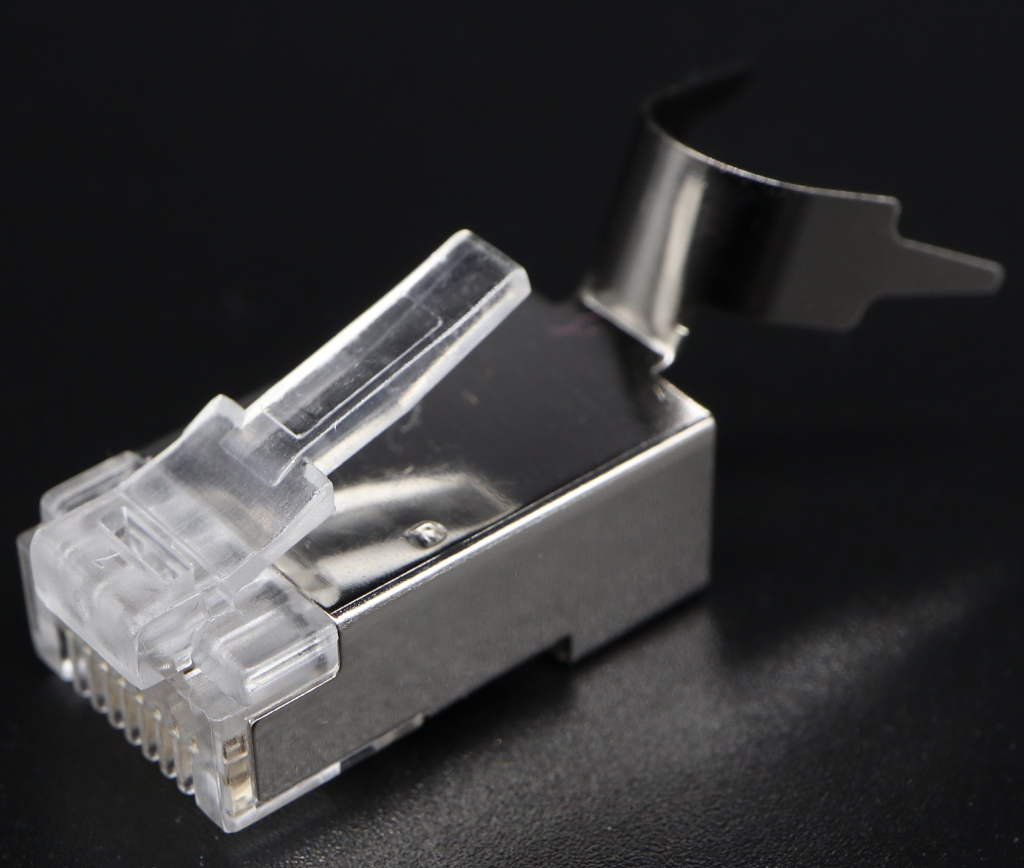

    P8-069 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.4mm/7.0mm

    Drawing Guide

Part No. P8-069
RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.4mm/7.0mm
Performance Category Cat.6A
Description 8P8C-F Shielded 2 Layers with cable clip and insert 1.4mm
Cable entry hole F
Loading bar Diameter 1.4mm
Wire Insert Diameter 1.4mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.40mm
Conductor type Solid | Stranded
Packaging Features 500pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature  - 10℃ ~60 ℃
Storage temperature  - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-014-1
Related Crimping Tools PM-236Q1D
