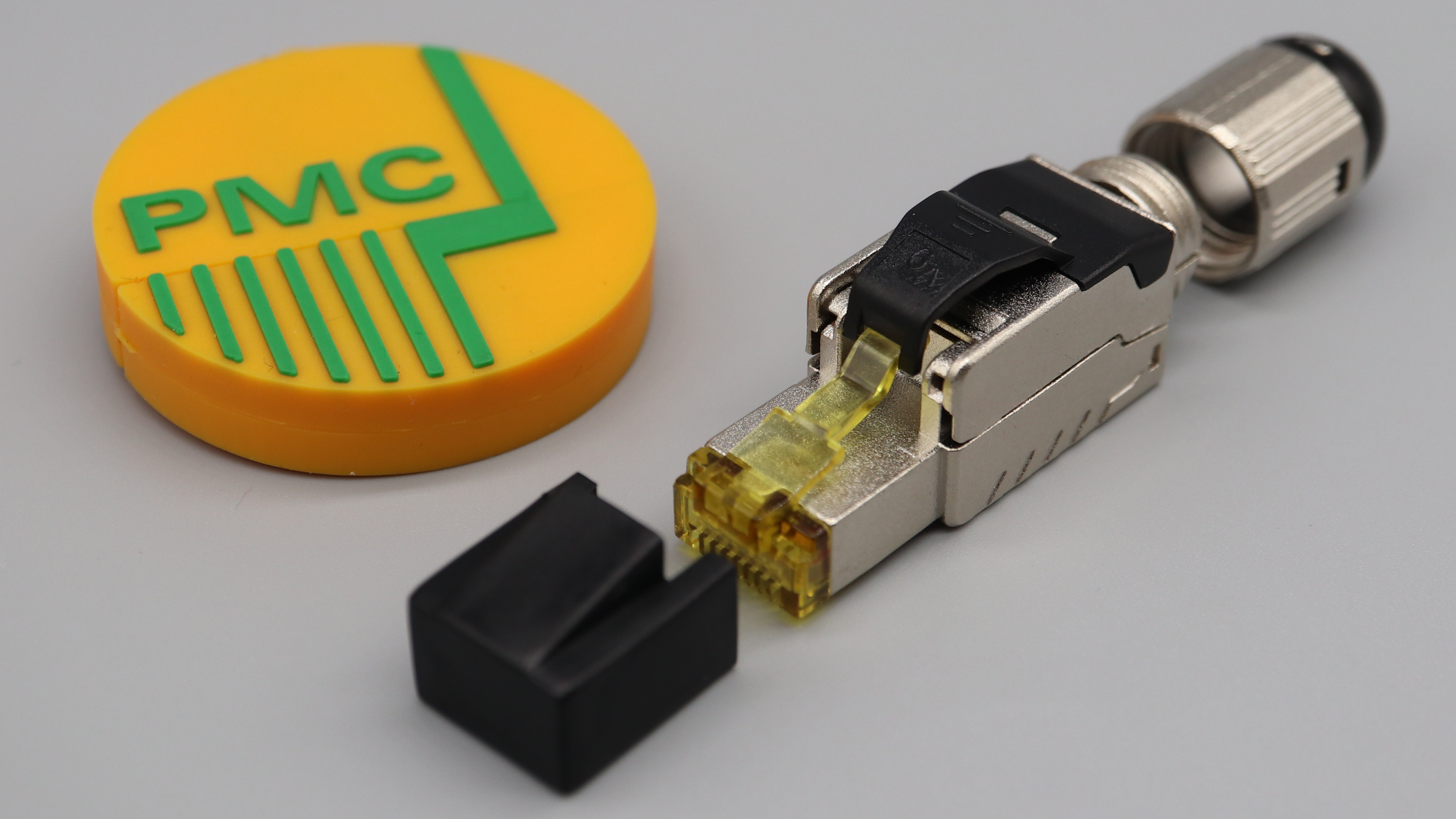

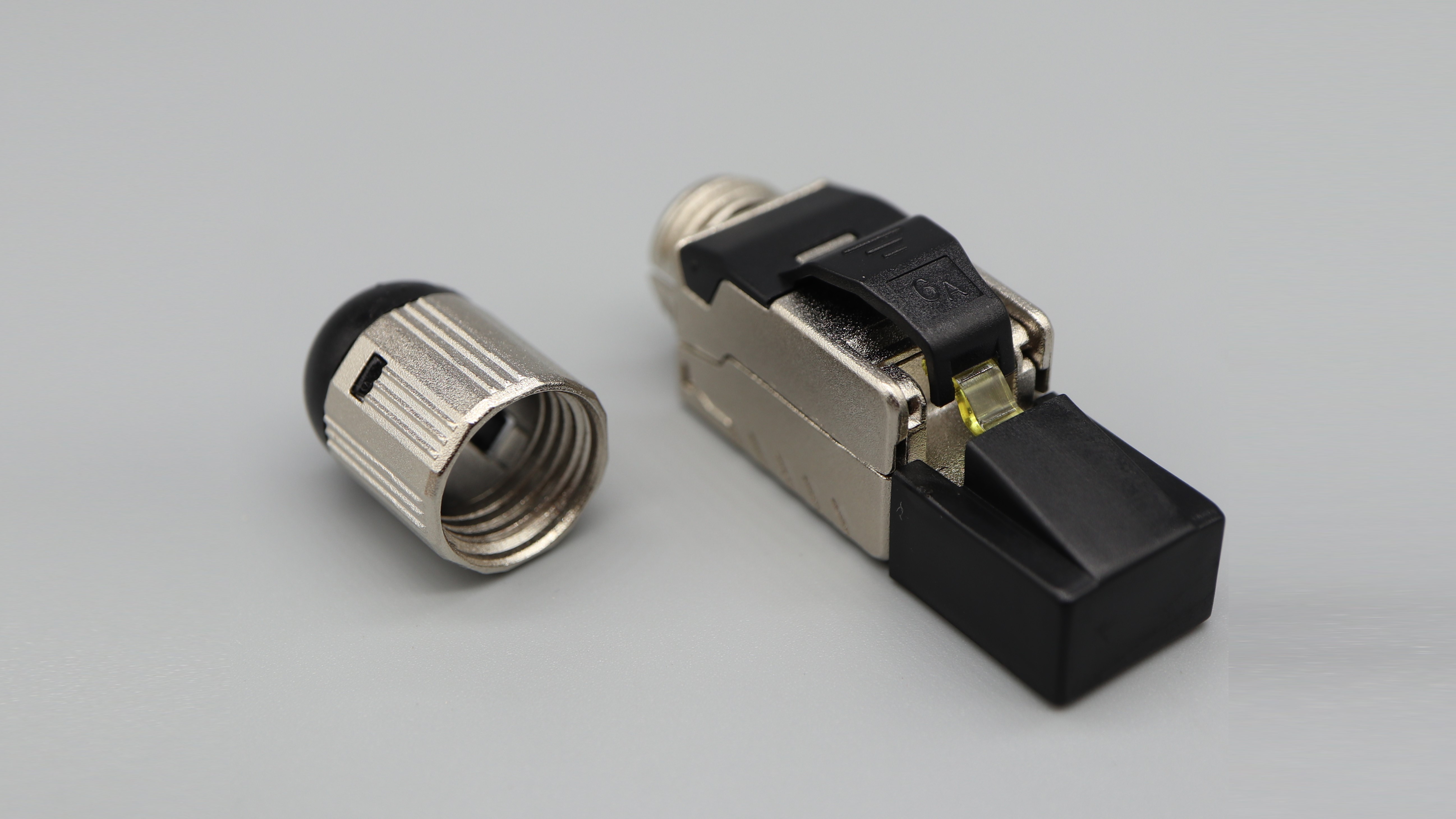

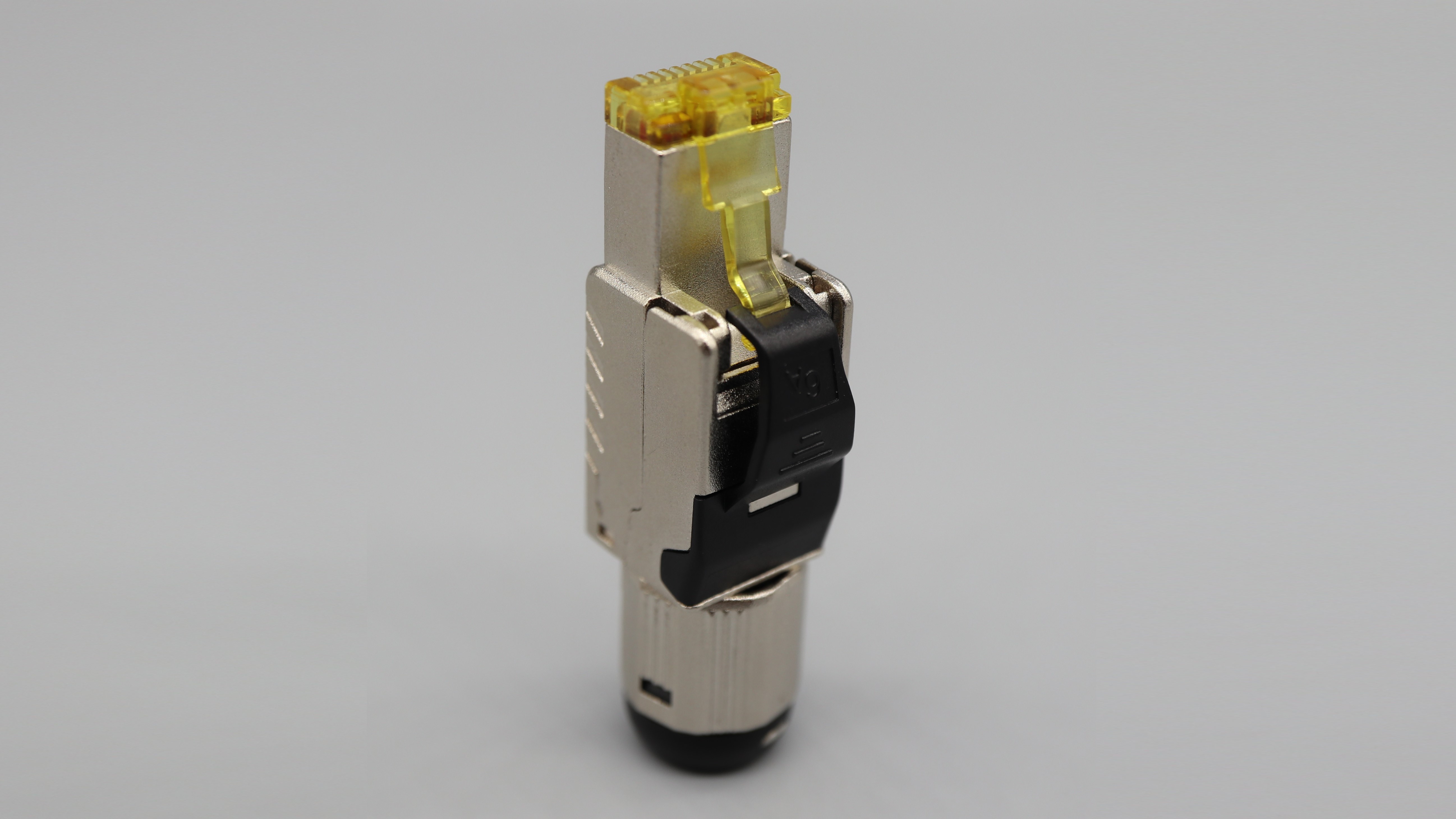

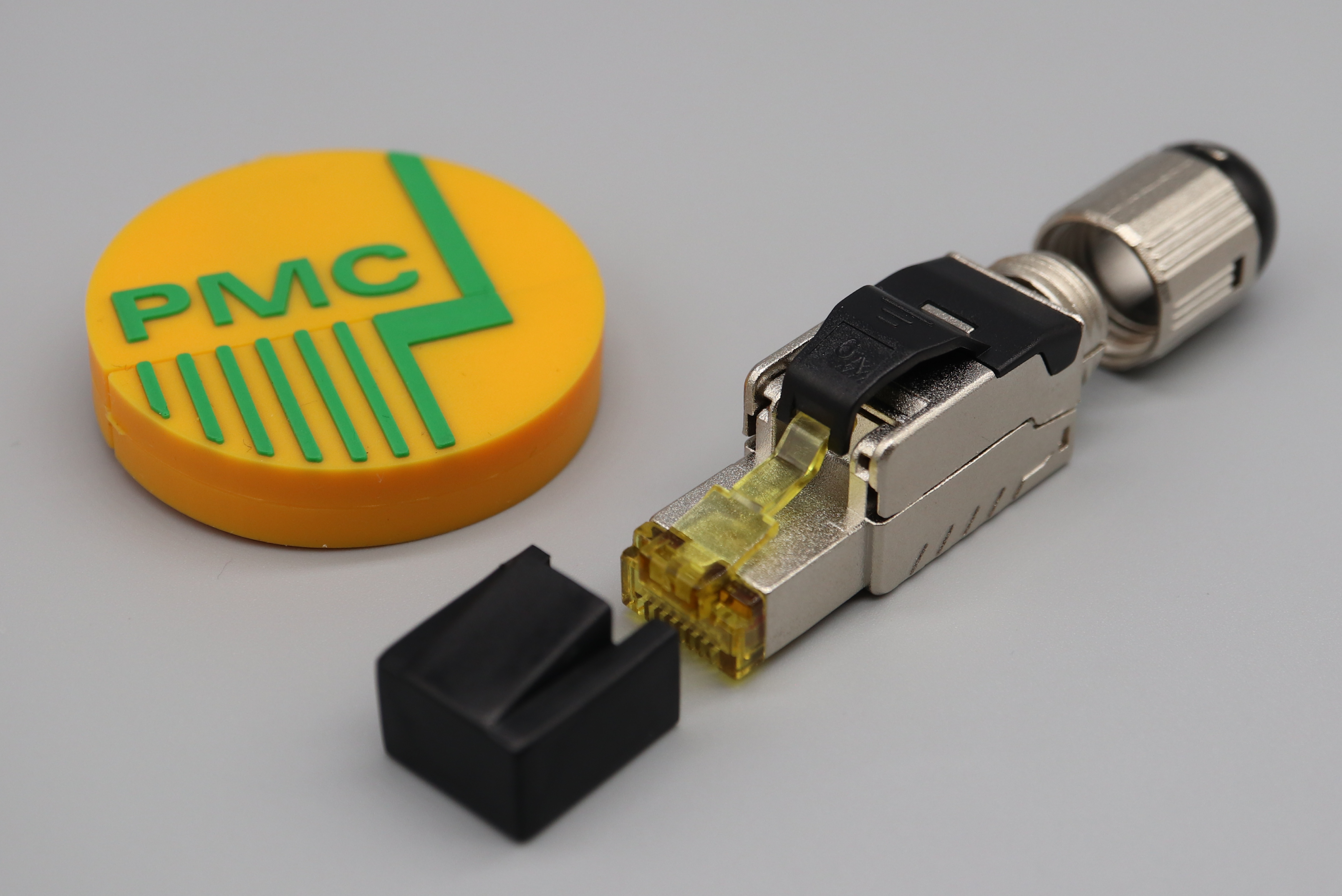

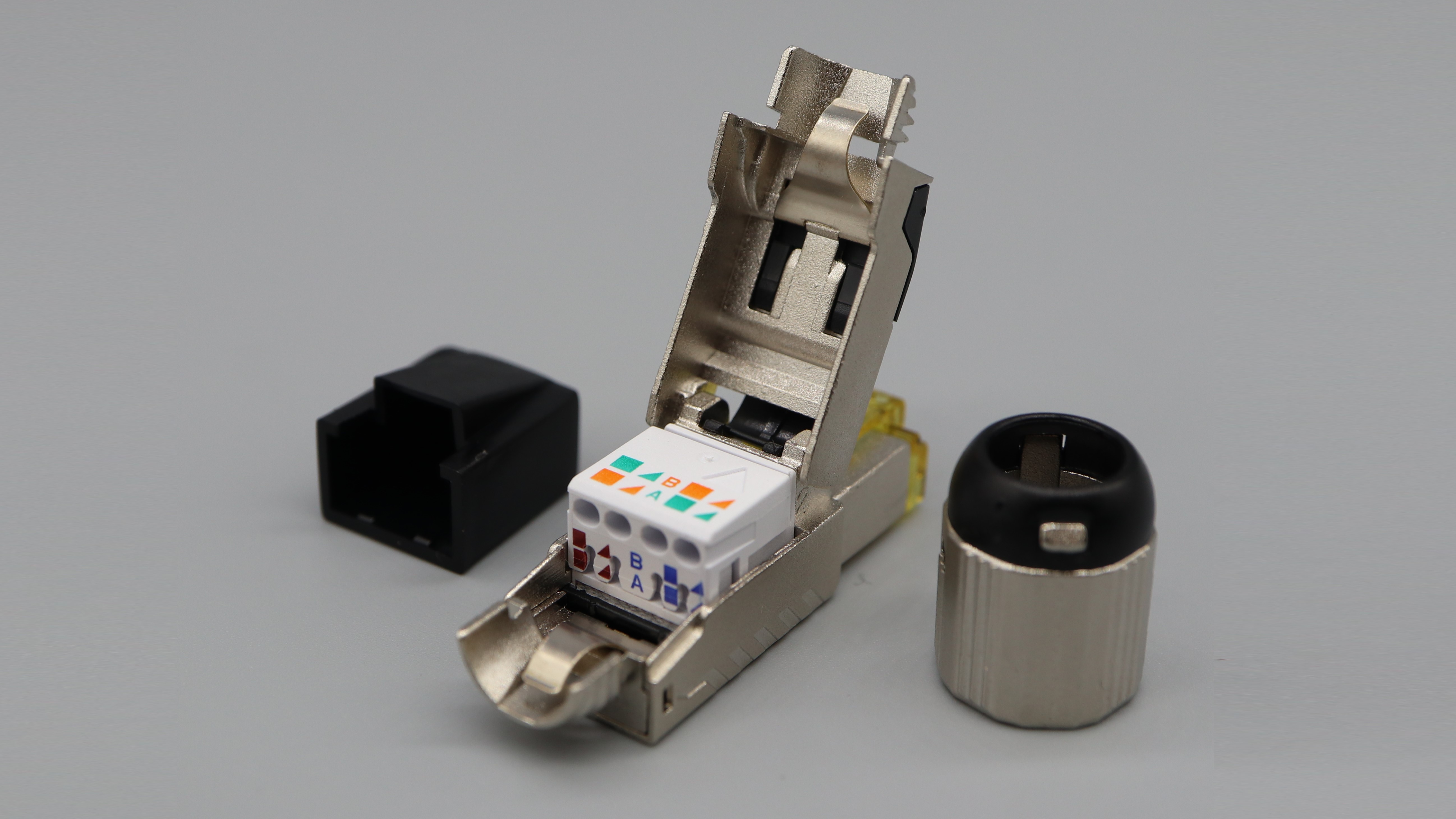

• P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type
    P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type

    P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type


    Features :

    ▲ Tool Free

    ▲ Performance guarantee

    ▲ Easy and quick installation, Reliable and Comfortable.

    ▲ Fully Shielded, Screw-fit Boot type

    ▲ Short Type





    Performance :

    ▲ Cat. 6A Patch Cord Component Level



    Recommended Cable Specification :

    Recommend Cable size

    Solid & Stranded wire

    Cable ( O.D.)

    C6A (P8-079-6)

    22-24AWG

    7.0 ~ 8.5mm

    Drawing Guide

Part No. P8-079-6
RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type
Maximum Cable O.D. Size Supported 7.0~8.5mm
Maximum conductor W/insulation O.D. Size 22 ~ 24 AWG
Conductor type Solid | Stranded
Packaging Features 1 piece / bag , 50 pieces / white box
Operation Temperature -10℃ to 60 ℃
Storage temperature -40℃ to 70℃
Compliance Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568.2-D , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant
