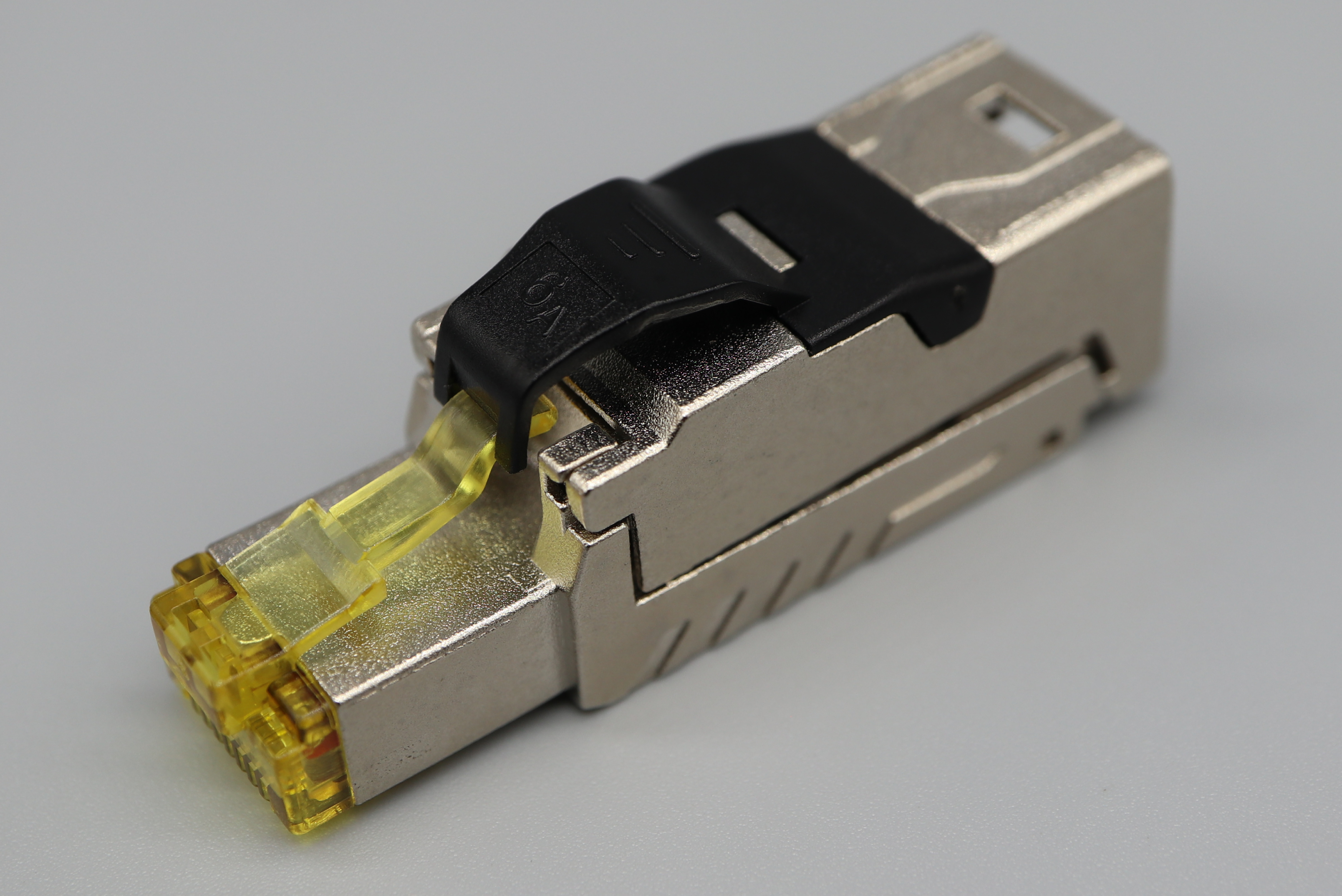

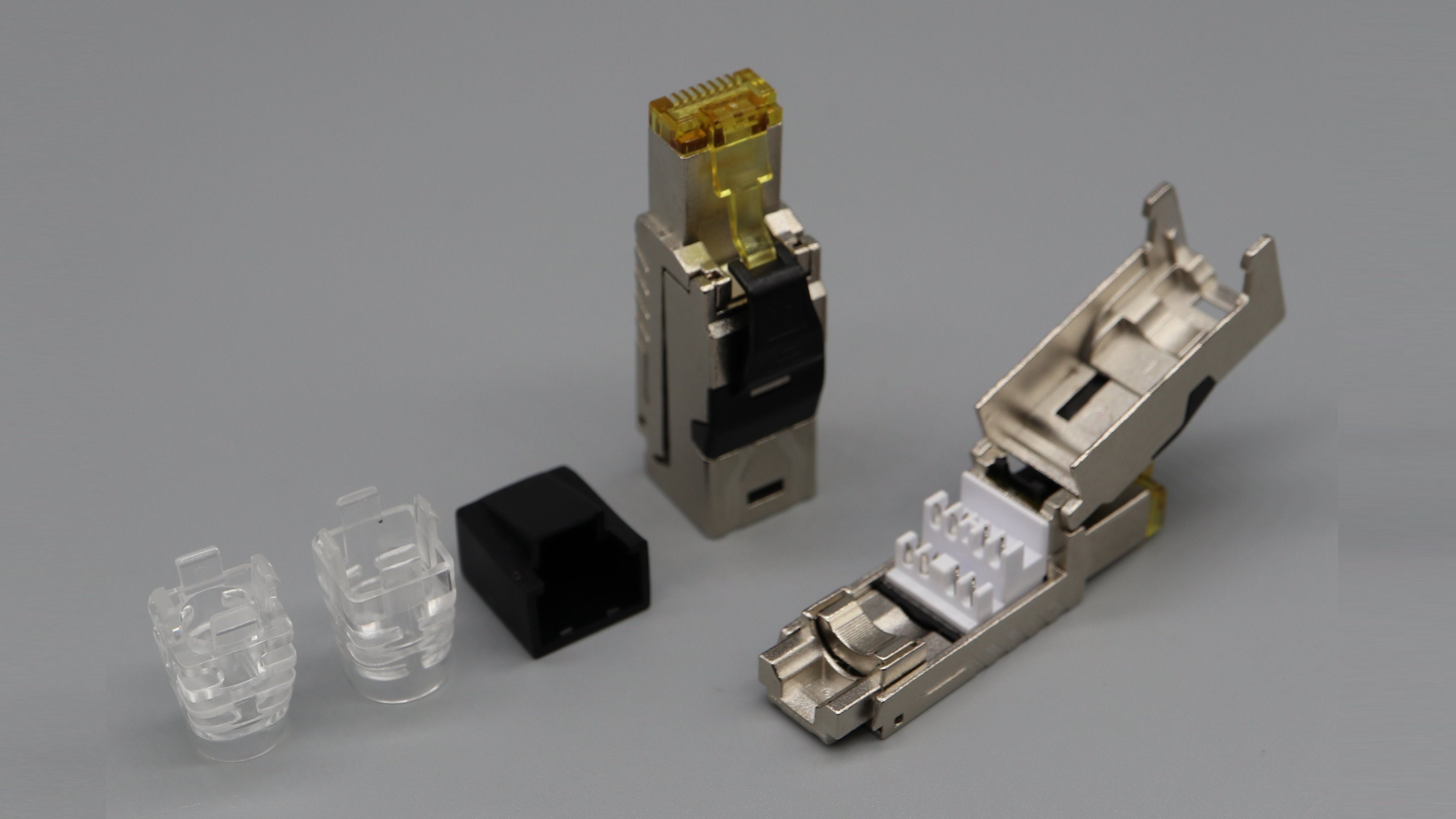

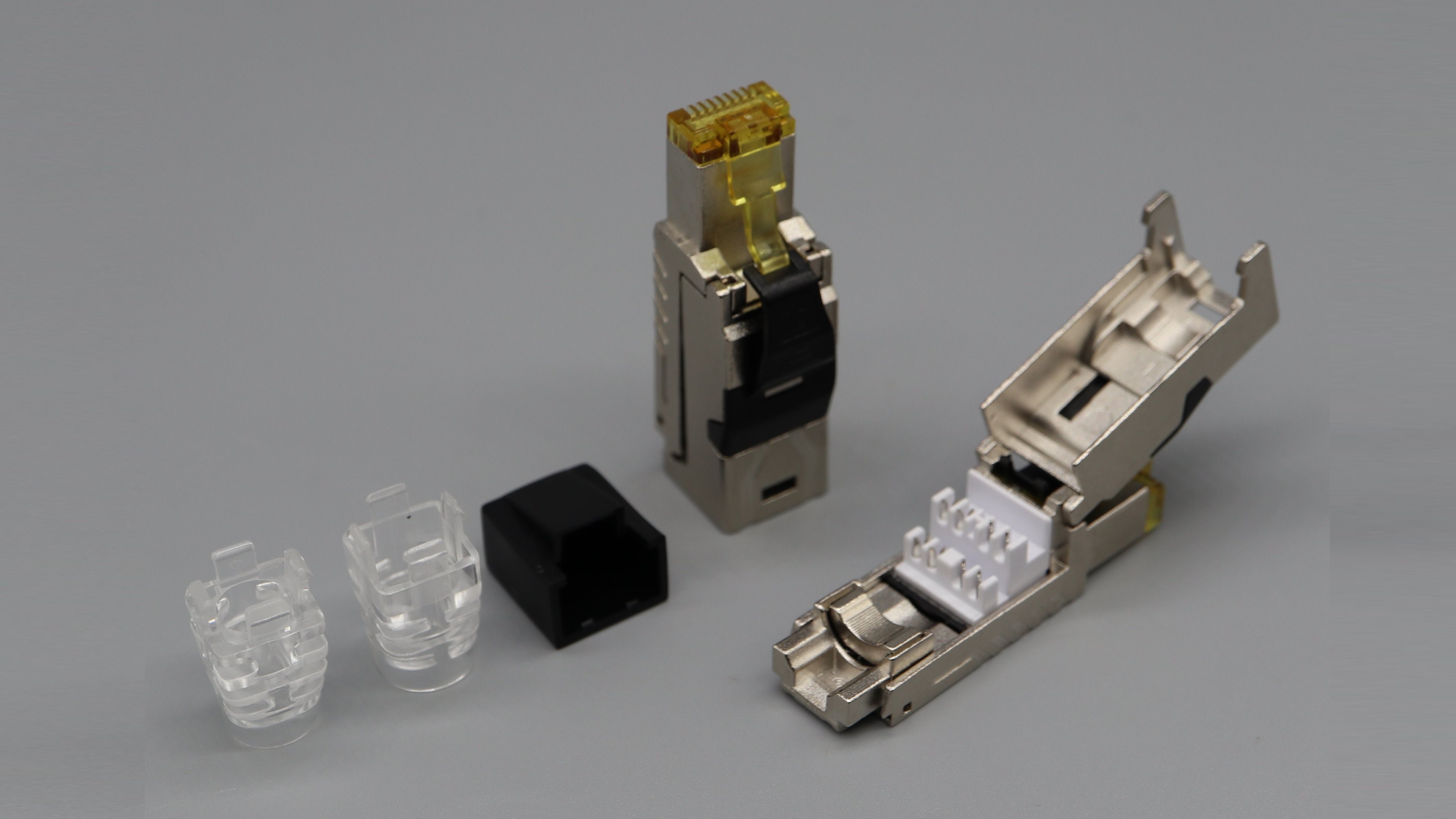

    P8-078 RJ45 Cat.6A Full Shielded Field Termination plug - snap-in boot type


    ▲ High Density and extreme performance by PCB compensation design for Hyper-Scale and Edge Data Center

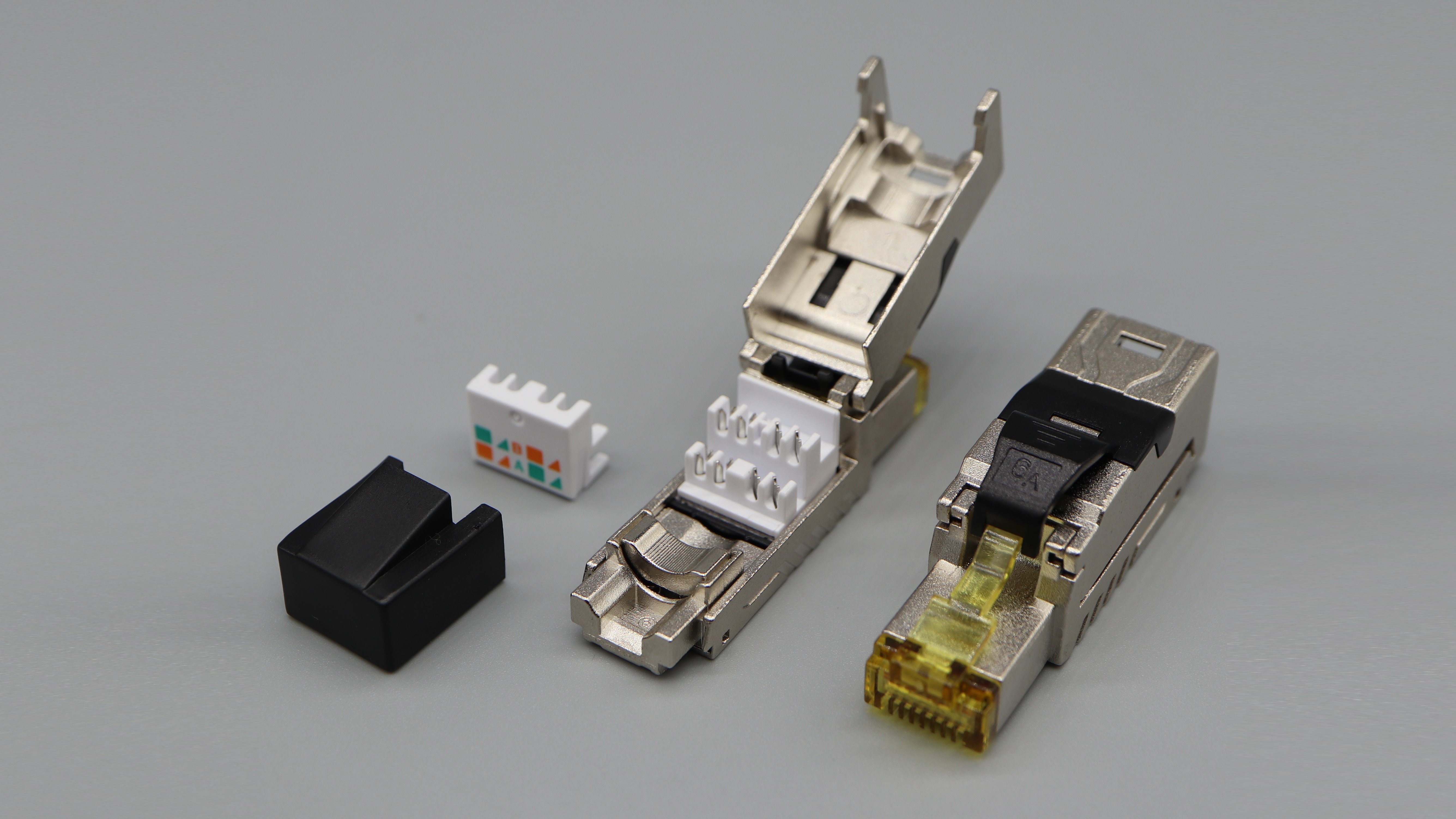

    ▲ Tool-Free structure design support easy and quick in-field termination, T568A & B wiring

    ▲ Power over HDBaseTTM (PoH) applications up to 100 W

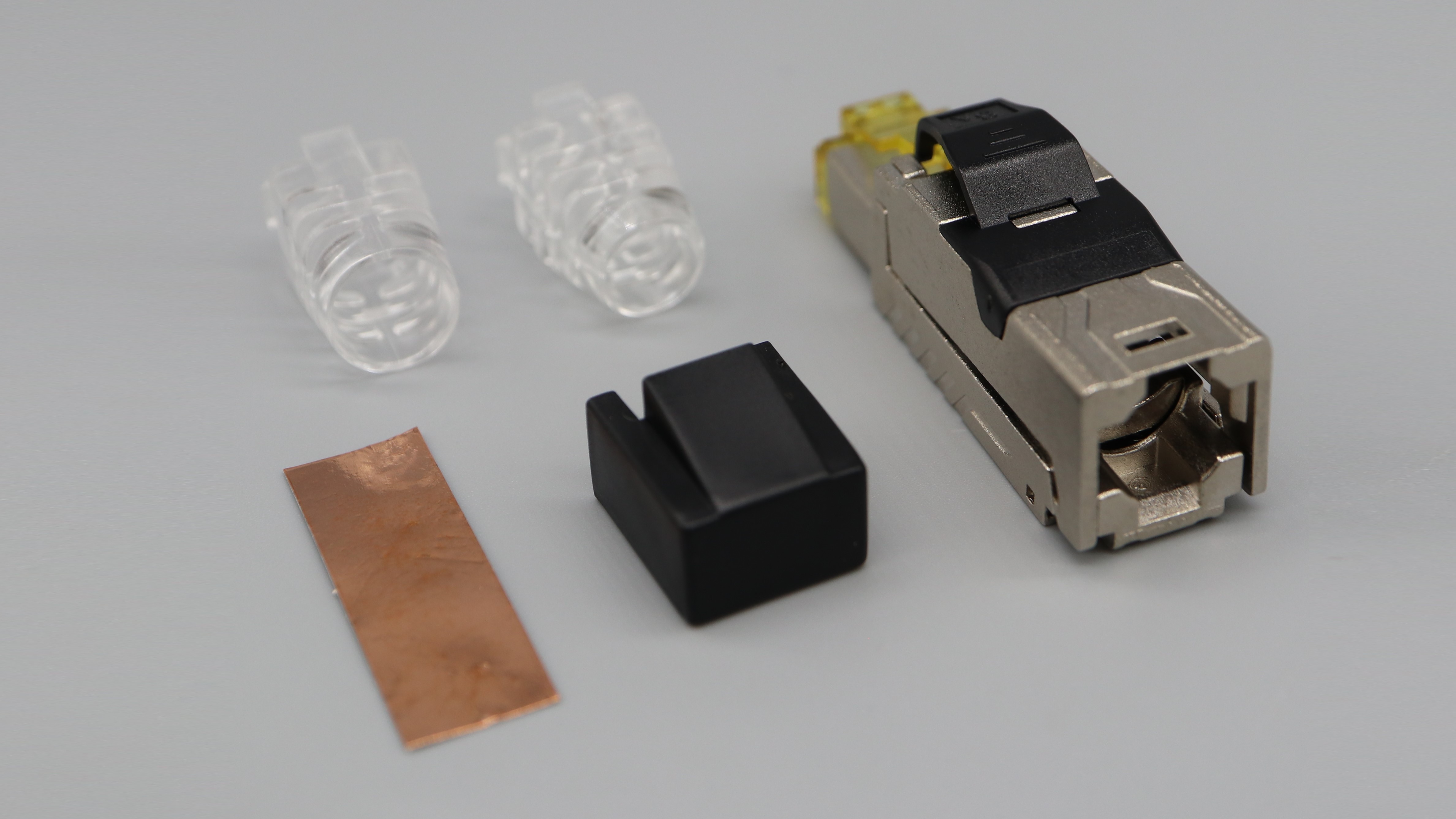

    ▲ IP20 performance by the Dust-Cap and Snap-In boot design



    Performance :

    ▲ Cat. 6A Patch Cord Component Level



    Recommended Cable Specification :

    Recommend Cable size

    Solid & Stranded wire

    Cable ( O.D.)

    C6A (P8-078)

    23-26AWG

    6.0 ~ 8.5mm


    Drawing Guide

Part No. P8-078
RJ45 Cat.6A Full Shielded Field Termination plug - snap-in boot type
Maximum Cable O.D. Size Supported 6.0~8.5mm
Maximum conductor W/insulation O.D. Size 23 ~ 26 Awg
Conductor type

Solid | Stranded
Packaging Features

1 piece / bag , 50 pieces / white box
Operation Temperature

- 40℃ to 70 ℃
Storage temperature

-10℃ to 60 ℃
Compliance

Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS / REACH Compliant
